12600 PUMP, WW, 5HP-230V- 56 FRAME-1 SPEED, BLUE W/E

Image 1
  • Image 1
Price:
$613.73
SKU:
3711621-0T7JDY
Brand:
Dynasty

Product Description

NLA - PUMP, WW, 5HP-230V- 56 FRAME-1 SPEED, BLUE W/E

If your spa was originally built with P/N 12600, regardless of the color of your current pump's wet end or the colors depicted below, order the correct replacement part based on the neck height of your current pump.

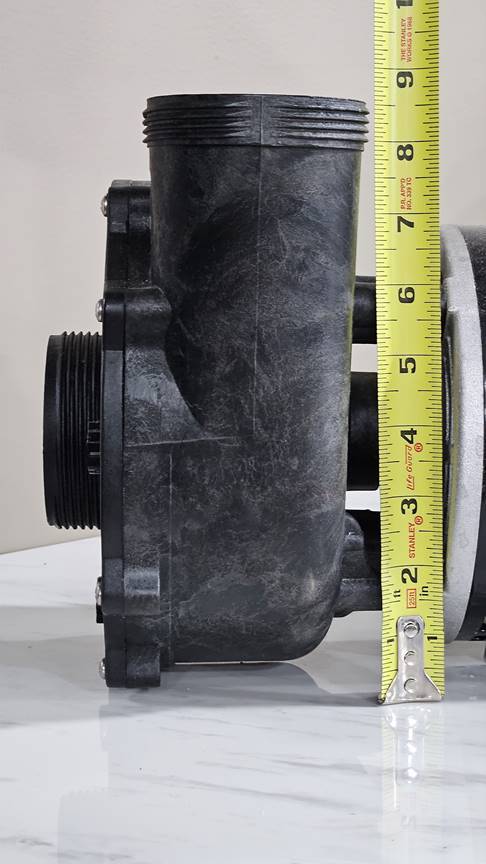

↑If your current pump wet end measures 8.5" in height, replace with P/N 15555 - *You will receive a 2-speed pump as the replacement. You must wire the 2-speed pump for only 1-speed.

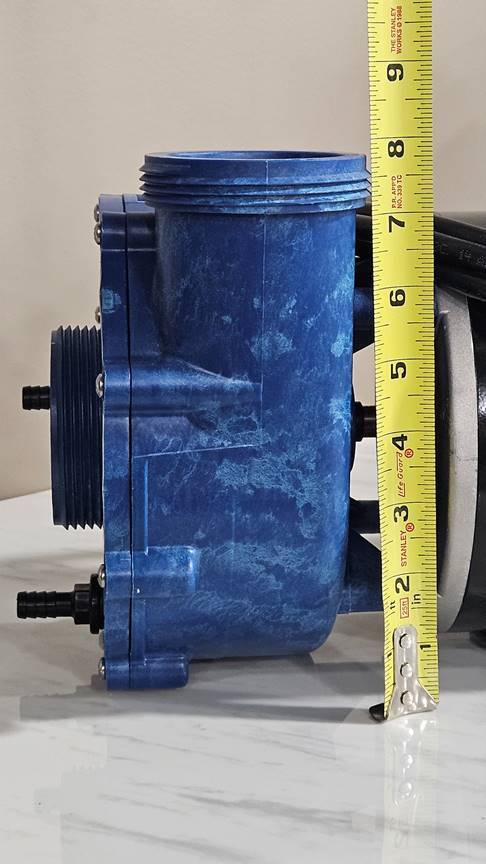

↑If your current pump wet end measures approximately 7.75" in height, replace with P/N 15552



All Waterway Executive Wet Ends and Pumps -

In order to accommodate for the growing demand of wet ends and pumps, Waterway will be removing two of the three drain plugs located on the front of the wet end. The two side ports are rarely used. For those instances where they’re required, the drain plug ports can still be drilled and tapped on location. This change will be introduced as a running change starting immediately.

If you have any questions regarding this notification, please contact a technician or customer service representative to assist you.

**Pump & motor manufacturers reserve the right to change motors on pumps or style of motor without notice. Motors shown may differ from current stocked product. Functionality remains the same**

Notes:

If you do not know if this is your part contact us with your hot tubs serial number.


* Please note when ordering Dynasty parts if a product is not longer in production Dynasty's current replacement part will be sent in its place. If you do not see your part please contact us.
* Please do remember when replacing pillows, jets and plastic pieces the colors may vary. Your old parts may have fading and there may be color variance in production lots.
* On pipe and tubing legnths will be cut to make shippable. If you contact us for a specific unclut legnth additional shipping/hanndling charges may apply- please contact us before ordering to make arrangements.
* Most Topside Control Pads DO NOT come with an overlay. Please ask before ordering.
*Control Packs are never returnable - any warranty, if applicable, must be processed by Gecko or Balboa.
